Text Box: Aluminum Scaffold
Made With Pride in
 The U. S. A.

Important Pricing Note: List Price as shown below. Discounts are available for larger quantities, payment-upon-delivery, and other special circumstances.  Please contact us for details.  The more we know about your project, the more we can be of assistance.

Double Wide Aluminum Scaffold Base Set

Text Box: Available in 6 Foot, 8 Foot, and 10 Foot Lengths.
Includes Base Frames, Casters, Horizontal and Diagonal Braces, a Standard and a Hatchway Platform.

Double Wide Aluminum Scaffold 6 Ft 9 In Extension Set

Text Box: Available in 6 Foot, 8 Foot, and 10 Foot Lengths.
Includes 6 Foot 9 Inch Extension Frames, Horizontal and Diagonal Braces.

Double Wide Aluminum Scaffold 5 Ft 6 In Extension Set

Text Box: Available in 6 Foot, 8 Foot, and 10 Foot Lengths.
Includes 5 Foot 6 Inch Extension Frames, Horizontal and Diagonal Braces.

Double Wide Aluminum Scaffold 4 Ft Extension Set

Text Box: Available in 6 Foot, 8 Foot, and 10 Foot Lengths.
Includes 4 Foot Extension Frames, Horizontal and Diagonal Braces.

Double Wide Aluminum Scaffold Guardrail Set

Text Box: Available in 6 Foot, 8 Foot, and 10 Foot Lengths.
Includes Guardrail Frames, Horizontal and Diagonal Braces.

The Best Service in the Scaffold Business.

Sonoma Coast Scaffold

Double Wide Aluminum Sets

Individual Scaffold Components

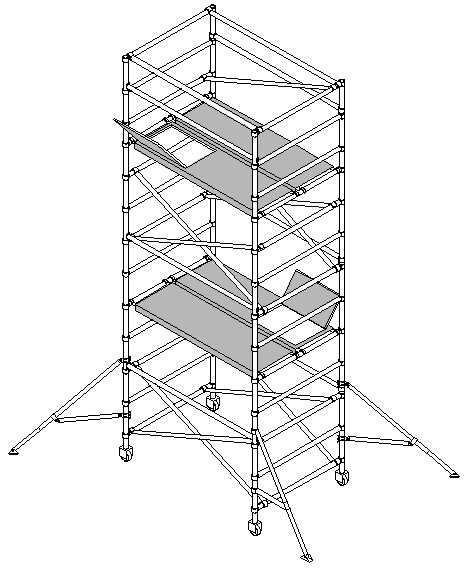

Double Wide Scaffold Assembly Example

13 Foot 3 Inch to 14 Foot 3 Inch (Legs at full 12 Inch Adjustment) Upper Platform Height.

Consists of Base Set, 4 Outriggers, 6 Foot 9 Inch Extension Set, Guardrail Set, 2 Standard Platforms, and 2 Hatchway Platforms.

Toeboards (not shown for illustration purposes) required for this and any application where the working (Platform) height is 10 Foot or higher.

Location of braces are shown as an example of how to maximize safety and scaffold stability. Different scaffold assemblies and applications require different bracing and outrigger placement.

Please see our safety page and either email (recommended for better response time) or call 707-875-3286 regarding your application.

Hatchways are located as far apart as possible to prevent “fall-through” accidents.

Base Frames, Extension Frames, Braces, Outriggers, Casters, Platforms, Couplers.

You name it, we better have it.  If not, we can order it or have it fabricated.

If you don’t find it, please contact us.

Folding Stairwell Base



Single Wide shown.



Double Wide also available.



Both available in 6 Ft and 8 Ft Lengths.



See our Components Page for pricing

Website Design and Illustrations by Sonoma Coast Scaffold LLC, Engineering.





First-Time Customers:

for quickest response, email:

Sales@SCScaffold.com

Length

Part Number

List Price

6 Foot

SDWB06

$1640.00

8 Foot

SDWB08

$1748.00

10 Foot

SDWB10

$1862.00

Length

Part Number

List Price

6 Foot

SDWX606

$768.00

8 Foot

SDWX608

$786.00

10 Foot

SDWX610

$830.00

Length

Part Number

List Price

6 Foot

SDWX506

$692.00

8 Foot

SDWX508

$710.00

10 Foot

SDWX510

$754.00

Length

Part Number

List Price

6 Foot

SDWX406

$622.00

8 Foot

SDWX408

$640.00

10 Foot

SDWX410

$684.00

Length

Part Number

List Price

6 Foot

SDWG06

$522.00

8 Foot

SDWG08

$567.00

10 Foot

SDWG10

$606.00
